HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

Name: HDF8011 VOC Test Chamber EQUIPMENT DETAILS
Brand: HAIDA
Price: 1 USD

Brand Name : HAIDA

Model Number : 5100-HD

Certification : ISO 9001:2000; ISO 9001:2008

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow

Supply Ability : 30 Sets per Month Haida

Delivery Time : 5-8 work days

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Sample Size : 80mm × 300mm

Range Of Rotation : 0-360°

Armrest Height : 650-780mm

Weight : 150Kg

Timing Range : 0-999S

Closing Force : 50+/-5N

Loading Weight : 100lb or 225 lb

Force Sensor : High precision brand sensors 7 sets

Rate : 8 ~ 12 times / min

Resolution : 0.1kg, 0.98N, 0.22LB

Max Load Capacity : 1000kg

Number Of Cycles : 1~500,000

Static Test Accuracy : ±0.1%

Flow Measurement Range : 10~100m1/min

Test Height : 300-600mm

Contact Now

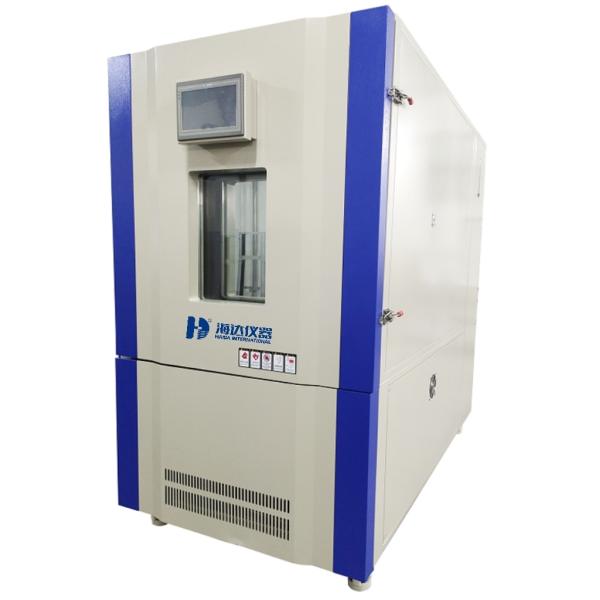

HD-F801-1 VOC Test Chamber

EQUIPMENT DETAILS

It is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

Working Principle

Put sample into 1000L square test chamber, under specify temperature, humidity, air velocity. The VOC and formaldehyde will released from samples and mixed with the air in the chamber, the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m³).

Design Standard

ISO 16000-9 <Part9: Determination of the emission of volatile organic compounds from building products and compounds from building products and furnishing—Emission test chamber method>

EN 16516 <Construction products: Assessments of release of dangerous substances – Determination of emissions into indoor air>

Main technical parameters

Item	Specification
Inner dimension(WDH)	(1±0.02)m3
External dimension(WDH)	123021502020mm(WDH)
Test temperature range	(15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable
Humidity range	(30- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable
Background levels	Formaldehyde≤0.006mg/m³ TVOC≤0.02 mg/m³ Single VOC≤0.002 mg/m³
Air Velocity	0.1- 2m/s, Adjustable
Air replacement rate	0.5/h
Loading factor	0.4~1.8(m2/m3)
Flowmeter	Electronic air flow meter
Leakproofness	1KPa relative pressure, leakage rate＜10-3*1m³/min, import and export air differ＜1%
Cooling system	Aspero refrigerating compressor
Air supply system	Oil-free air compressor, cold dryer
Adiabaticity	The inner walls and doors of chamber shall have effective thermal insulation.
Material	Chamber using Jacket structure design Two layers of stainless steel inner compartment The middle air layer The inner compartment with mirror stainless steel Don’t produce and absorb formaldehyde and VOC
Air collector	Collector speed: 0.25L/min ~ 2.5L/min, accuracy:±5% Collector time: 99 hours adjustable Equipped with sampling tube, absorption bottle, gas sampler
Power	Three-phase, AC380V,50Hz
Standard	Test Chamber, sampling tube, absorption bottle

Test Standard:EN 16516
